Get the Details Right — Get Better Power When you control the details,
MA靜神在最被忽略的地方、做了最關鍵的起點。
當電源基礎正確建立，音樂的細節、密度與動態，都將自然釋放。
MA靜神 不只是插座，而是讓整套音響系統升級的關鍵核心。
結合電能控制與聲學優化設計，具備高電流承載、高性能傳輸與高平衡穩定性，為系統建立真正純淨且穩固的電源基礎。
每一個內外結構都不只是外觀，而是性能的一部分
有效改善腔體內部的磁場與振動干擾，創造更穩定、順暢的電流通道。
打造出極致穩固的接觸結構，讓插頭與插座之間達到近乎「消失的接點」狀態。
MA靜神 新一代隔離電源插座（MARS、Q2/P2），導入全新內外結構，改善從外到內的振動與磁場干擾。以最新裏外治振圖騰結構塑件，加上入線孔調音柱設計，還在隔離地迴介電上選用高達 5000V 介電係數絕緣片，來強化地迴路隔離，就連螺絲也是經過調配過，要求高強度不鏽鋼螺絲。
而這都只是優勢的一部分，還有更多細節深藏在MA靜神產品之中，等著您來體驗。
you gain an advantage in power performance that others simply don’t.
MA 靜神 focuses on the most overlooked part of the system—
and turns it into the most critical starting point.
When the power foundation is properly established,
your system naturally reveals greater detail, density, and dynamic expression.
MA 靜神 is not just a power outlet—
it’s the core foundation for elevating your entire audio system.
By combining advanced power control with acoustic optimization,
MA outlets deliver high current capability, efficient power transfer, and exceptional stability—
creating a truly clean and reliable power base.
Every Detail Matters
Every internal and external element is designed for performance—not just appearance.
Optimized structures reduce internal vibration and electromagnetic interference
A more stable, uninterrupted current path is maintained throughout
Precision contact design creates an ultra-solid connection
The result is a contact interface so refined,
it effectively becomes a “disappearing connection” between plug and outlet.
Next-Generation Design: MARS / Q2 / P2
The latest generation of MA 靜神 isolated outlets—MARS, Q2, and P2—introduces a completely re-engineered structure
to control vibration and electromagnetic behavior from the inside out.
Advanced resonance-control patterned housing
Tuned inlet port column design for field stability
High-grade insulation with up to 5000V dielectric strength for enhanced ground isolation
Carefully selected high-strength stainless steel hardware
Every element is carefully considered, down to the smallest detail.
And this is only part of the story.
There are even more refinements built into every MA 靜神 product—
waiting to be discovered in your system.
Installation Guide
MA 靜神 Isolated Power Outlet (Tuning Column System) 安裝訣竅：

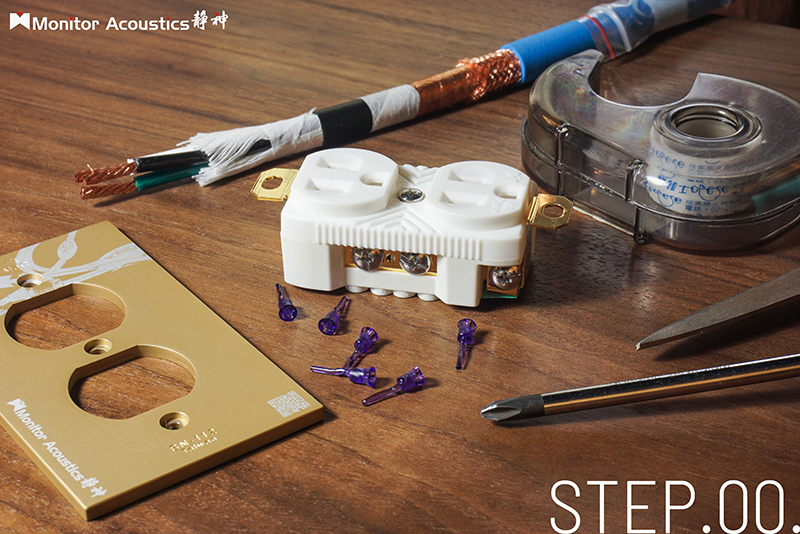

請先準備好換裝的工具，MA靜神壁插座（調音柱六根）、電源蓋板、膠帶一小段、螺絲起子。
※ 動手前，請務必先將家中總電源電箱開關「關閉」。

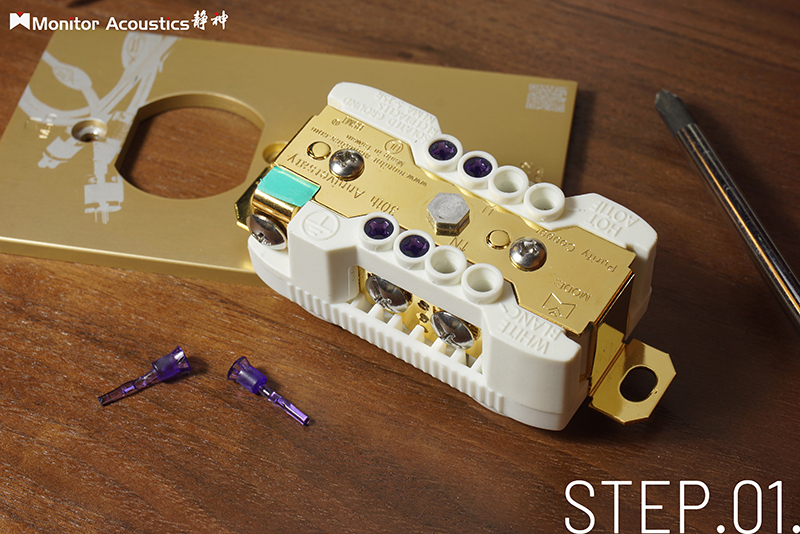

STEP.01 — Pre-securing Tuning Columns 預固定調音柱
若預設只有一組進線，沒有要串接出去，就先將半部的調音柱（四根）一旁螺絲先上緊封口。
If the outlet is configured for a single input (no downstream connection):
Install and tighten four tuning columns on one side
Fully secure them to seal the unused chamber
This ensures internal structural stability and field consistency.

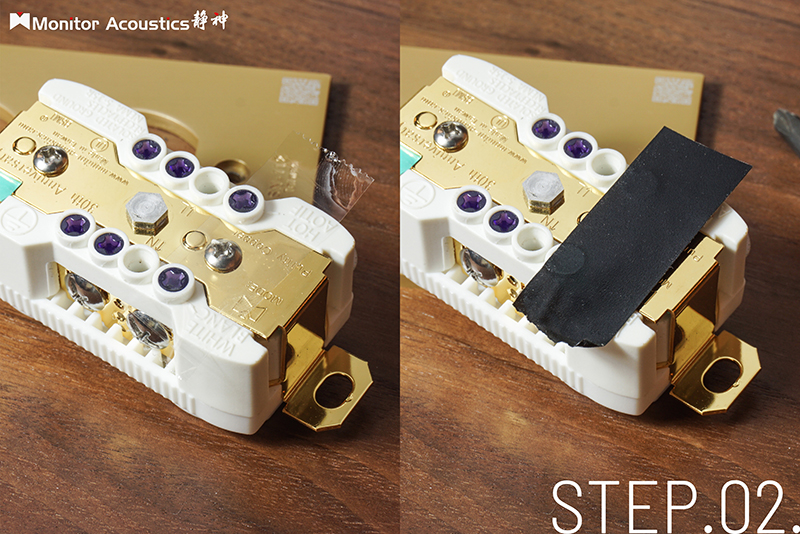

STEP.02 — Outer Column Placement 外側調音柱安裝
接著，將兩根調音柱放入外側兩孔（如圖），先用「膠帶」貼蓋住調音柱，避免掉出，這就是關鍵的小秘訣。
Insert the remaining two tuning columns into the outer input ports
Use a small piece of tape to temporarily secure them
Note: This prevents displacement during handling and ensures alignment during wiring.

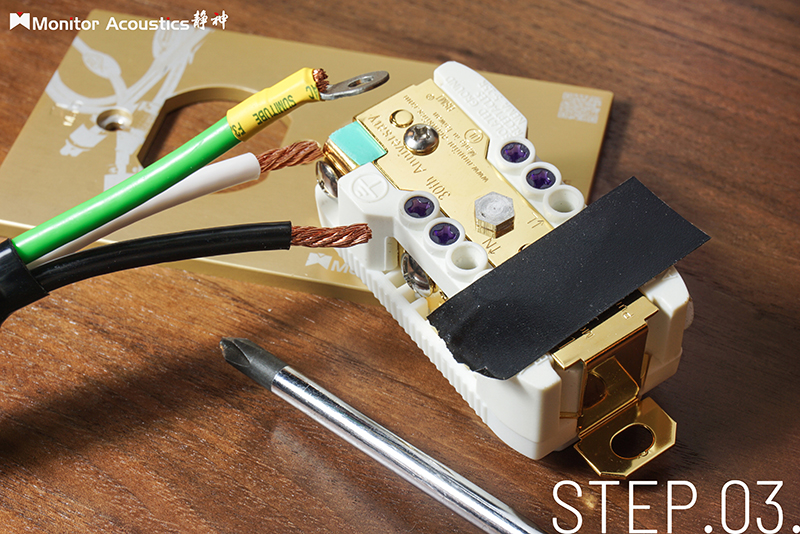

STEP.03 — Wire Preparation & Insertion 電線準備與插入
將電源火線、中性線撥好線備妥、地線打上O端子，再將插座入線孔夾片退至孔穴全開，電源線依序插入標示火線、中性線孔，同時注意銅線務必插入到底。
Prepare conductors as follows:
Strip insulation to appropriate length
Attach ring terminal (O-type) to ground wire
Loosen terminal clamps fully
Insert wires into designated terminals:
Live (Hot) ／ Neutral (N)
Ensure conductors are inserted fully to the base of the terminal.

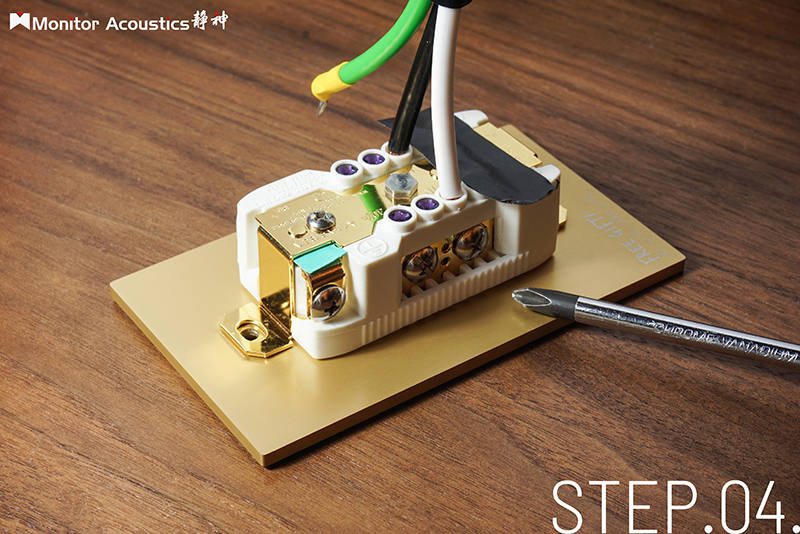

STEP.04 — Mechanical Fixation 機械固定
不要有裸銅（銅絲）露出，接著上緊螺絲，銅線務必緊實鎖固。過去有玩家在入線過程中翻轉移動時，調音柱會容易掉出，所以才會建議玩家要在事前，先貼上膠帶，方便裝配作業。
Confirm no exposed copper strands
Tighten terminal screws firmly to ensure maximum contact pressure
Important:
During repositioning, tuning columns may shift if unsecured.
Temporary taping (Step 2) is strongly recommended.

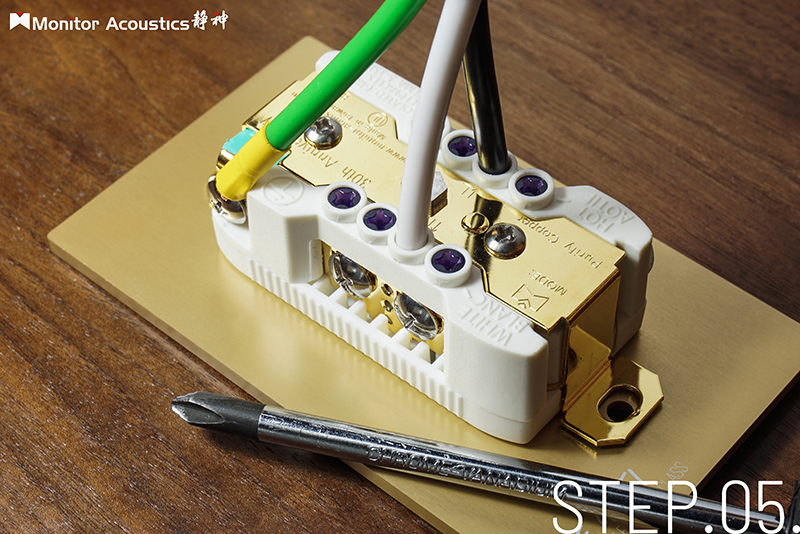

STEP.05 — Final Inspection & Wall Mounting 最終檢查與固定安裝回牆上
最後，再次確認入線孔周邊都沒有裸銅露出，並確認螺絲都有上緊，就可以將插座裝回牆上，將總電開關閘開啟。開始享受完美的電源起點。
Before restoring power:
Verify all connections are secure
Ensure no exposed conductors
Confirm all screws are properly tightened
Mount the outlet into the wall enclosure and secure the faceplate.
Restore power at the main breaker.
you can now experience a truly optimized power foundation—
and hear your system perform at its full potential.
