高純度 6N OCC大線徑，專為頂燒玩家設計的極致逸品
﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏
MA靜神旗艦級室內電源專線「SZZ-56M」，採用精煉6N OCC銅導體，以11蕊0.30mm的高純度、單結晶、無應力的OCC銅導線絞繞成一股，水、火、地線各以7股絞繞成一芯，三芯導線再分別以白、紅、綠三色SR PVC作第一層絕緣披覆，接著在三芯之間加入棉線條作為抑振緩衝之用，外部再以絕緣紙包覆，緊接著包覆一層導電PVC，搭配上一股由19蕊0.16mm的OFC銅導線＊，外層再包覆一層厚科技銅皮捲繞，最後再以一層墨綠珠光PVC包覆。SZZ-56M的規格、外觀與SZZ-55M雖然相似，但導體核心的純度、線芯編排、絞繞方向都不盡相同，但同樣大幅超越標準，展現無比的充沛能量，就算音響室裡機海一片，也不怕中氣不足、氣虛軟腳。SZZ-56M以其極優異的性能，展現大鳴大放的氣勢，讓發燒用家擁有醇、勁、豐、潤、靚的充沛電能。
＊若玩家以SZZ-56M自製電源線，可將屏蔽線併接地線，接於公頭地迴端，進一步強化地迴的電位釋放，與電源能量無阻傳輸。
FEATURES 特點：
導體：三條 6N OCC高純度單結晶銅 / 導體線徑：5.55mm2 (平方公釐)
線身：六道介電隔離防護（五道塑料：三色SR PVC、抑振棉線條、絕緣紙、導電PVC、墨綠珠光色PVC / 一道金屬：厚科技銅皮）
外線徑：14.5mm±0.2mm (線身直徑)
﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏

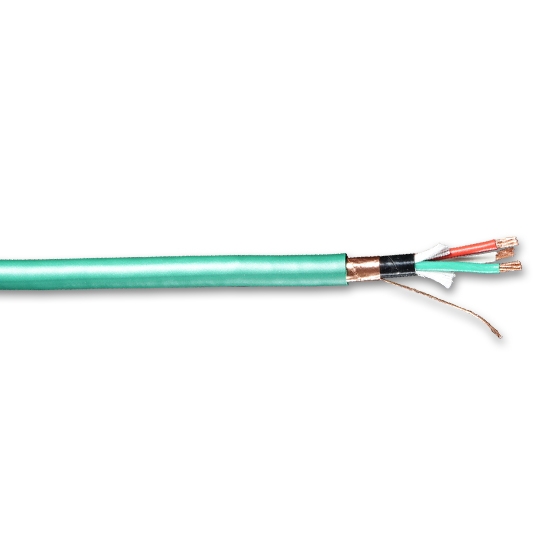

SZZ-56M (6N OCC) Indoor Three-Core Shielded Power Cable (Bulk Roll)
Flagship-grade power transmission—crafted for elite audiophile performance.
─────────────────────────────────────────────
The SZZ-56M represents the pinnacle of Monitor Acoustics' indoor power cable lineup. Developed for uncompromising audiophiles, this flagship cable features ultra-refined 6N OCC single crystal copper conductors with an extra-large 5.55mm² core cross-section, enabling effortless delivery of clean, stable, and powerful energy.
Each conductor core is made by twisting 7 bundles, each consisting of 11 strands of 0.30mm 6N OCC wire—ensuring minimal stress, maximum purity, and optimized current flow. The three cores (live, neutral, and ground) are individually jacketed in SR PVC insulation in white, red, and green. Cotton damping threads are placed between the cores to reduce resonance and vibration, enhancing stability.
Layered with insulating paper, a conductive PVC sheath, and a 19-strand 0.16mm OFC drain wire, the cable is then wrapped in a thick copper foil shield to effectively eliminate RFI/EMI interference. The structure is finished with a dark green pearlescent PVC jacket for both durability and elegant appearance.
While the SZZ-56M shares a similar architecture and appearance with the SZZ-55M, it surpasses its sibling in core material purity, conductor geometry, and internal winding direction—raising the bar for flagship-grade performance. Whether powering a dense, multi-component system or a reference-grade two-channel rig, it ensures a flow of energy that is rich, firm, full-bodied, and resolutely quiet.
For DIY configurations, the shield drain wire can be bonded to the ground conductor at the plug’s earth pin to further enhance ground potential release and enable unhindered current transmission.
─────────────────────────────────────────────
FEATURES
Conductors: Three-phase 6N OCC single crystal copper
Conductor Size: 5.55mm² per core
Cable Architecture: Six-layer dielectric isolation and shielding
- SR PVC insulation (white/red/green)
- Cotton damping fillers
- Dual insulating paper layers
- Conductive PVC layer
- 19-strand 0.16mm OFC drain wire
- Thick copper foil shielding
- Pearlescent dark green PVC outer jacket
Outer Diameter: 14.5mm ± 0.2mm
