給音響一條門當戶對的電源線
﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏
現在聽音樂、玩音響的人已經越來越聰明，市場上對於電源品質的重視度也不同以往，為求端正充沛的純淨電源，能做得更好、絕不會忽視放過，所以我們為較少見的IEC C19電源連接埠，開發出MA-2200 20A隔離屏蔽電源線，這類的電源線基本上都是較高階的後級音響才會使用，例如英國銘廠Chord Electronics，旗下的高階後級都是採用IEC C19/C20連接器，不過，許多廠商對於音響的配件，大多只為符合安全規範，能否徹底激化音響性能，就要看用家如何去調整了，這時就需要一條好一點的電源線，把整個聲音提升上來。
為了製作這一系列的C19 20A電源線，我們為MA-2200設計了一款專屬的電源公頭，特別挑選高精紅導銅作為導件，其硬度適中、耐插拔，導件以超慢速細緻打磨處理、鍍上電子級高純金與貴金屬銠，強化導件表面強度與電源傳輸速度，最後再以-196°C超低溫處理。此外，選用高強度、耐溫差且抑振的介電核心與外殼作為介電防護，更在三相之間設計了特殊的導磁結構，讓三相電不致相互干擾，如此更能確保電源能夠無染地純淨直通，加上穩固方形入線結構設計，將阻抗降至最低，保持最佳的傳輸條件。介電為核心則是採用獨特複合奈米塑料，內部配方添加多種奈米粉末，倍增介電隔離性能，配上高強度、耐溫差的抑振聚碳酸酯外殼，讓隔離、防護、抑振面面俱全，外殼尾端還設計散磁裝置，跨架在兩顆固線螺絲上，作為消散磁迴干擾之用，確保內部電源不受外界侵擾，保持電能能快速無擾的傳遞，母頭則是選用Hubbell 20A/250V的電源頭。我們將MA-2200線長設定在兩米，選用6N OCC高純單晶銅作為導線，單芯導線線徑達3.61mm2，三相皆覆以高密度HDPE，接著在三條線芯與兩層絕緣紙之間，填入棉線作為抑振緩衝材，外層再捲繞一層厚科技銅皮，杜絕外在RFI/EMI的干擾。接著覆上一層高密度HDPE，最後再覆上一層耐熱PVC與隔離編織網作保護。MA-2200為電源建構出端正無瑕的通道，提供電能效率極佳傳輸速率，就算音響後級大量耗電，也能源源不絕地傳輸端正精準的電源，提供音響充沛且純淨的無限能量，讓音響發揮出百分百實力，展現出從容大器的悠然氣度。
﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏
FEATURES 特點：
導體使用3.61mm2 6N OCC高純度單結晶銅
線身隔離採多道獨家配方介電塑料與科技厚銅皮
專為MA-22XX系列設計電源公頭，核心採用與KenStyle相同
導件以高精紅導銅、超慢速細緻打磨、鍍電子級高純金與貴金屬銠處理
特殊的方形銅固線裝置，與獨特的消散磁迴裝置
耐壓：600v/20A
長度：約2.0m（可接受長度訂製，所有工序製程比照正規線，價格計算以米/公尺(meter)為單位，每米加價以正規品售價20%為計。）
重量：約1520g
﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏

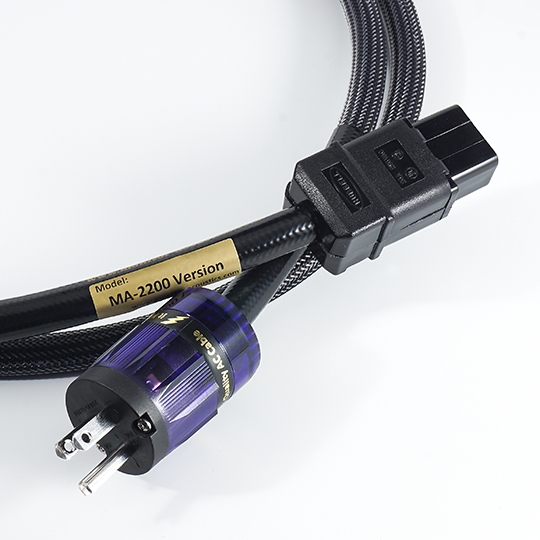

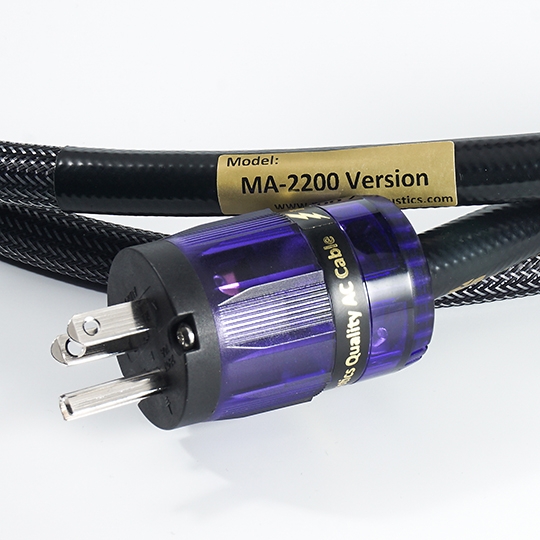

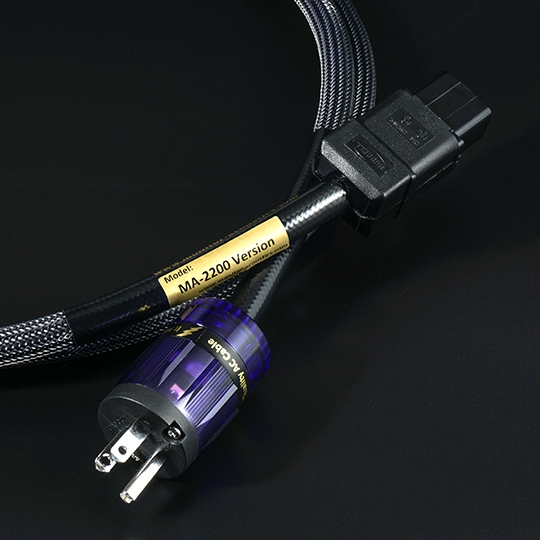

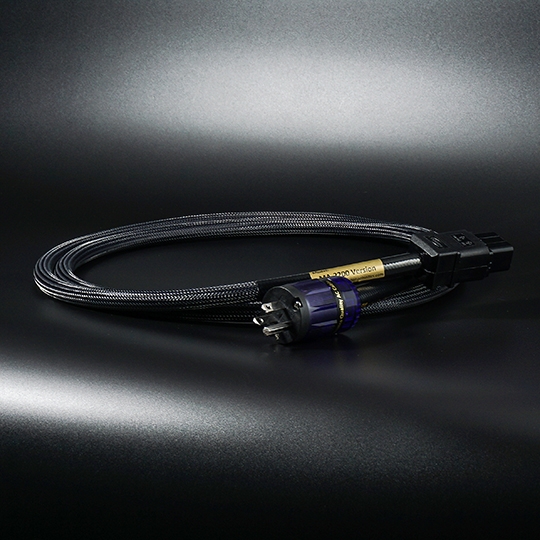

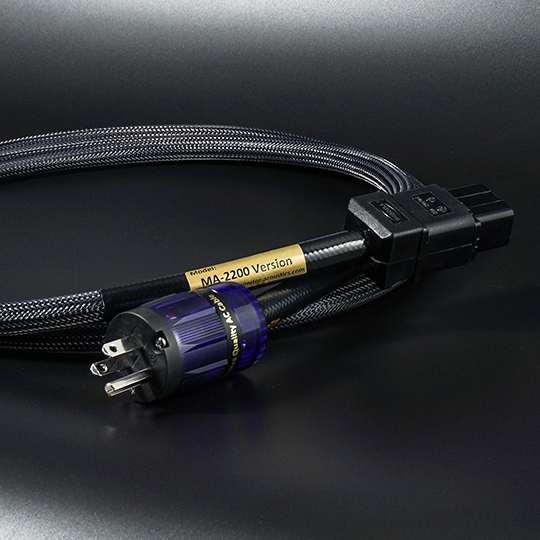

MA-2200 IEC 20A Finish AC Power Cable (NEMA Type)
A Power Cable That Matches the Caliber of Your System
﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏
As music lovers and audiophiles become more informed, the demand for high-quality power delivery is more critical than ever. Clean, stable energy is the bedrock of high-fidelity performance. For systems equipped with IEC C19 power inlets—often found in high-end power amplifiers like those from Chord Electronics—Monitor Acoustics presents the MA-2200, a fully shielded, 20A-grade power cable designed to deliver uncompromised purity and current stability.
While many manufacturers meet only the baseline safety standards, the MA-2200 goes far beyond—it's designed to awaken the full sonic potential of your equipment. The cable features a custom-designed NEMA power plug developed specifically for the MA-22XX series, with internal elements made from precision red copper. These contacts undergo ultra-slow polishing, followed by plating with electronic-grade high-purity gold and precious rhodium, then cryogenically treated at -196°C for enhanced hardness, stability, and conductivity.
At the heart of the cable lies 3.61 mm² 6N OCC single-crystal copper solid-core conductors, each wrapped in HDPE dielectric and stabilized with vibration-dampening cotton fillers. A high-tech copper foil layer shields the internal structure against external RFI/EMI, followed by additional layers of HDPE, heat-resistant PVC, and a braided protective mesh to complete the shielding architecture.
Internally, the dielectric core is composed of a proprietary nano-composite polymer blend, enriched with various nano-powders to maximize isolation and minimize vibration. The exterior shell is formed with high-strength, temperature-resistant polycarbonate, which suppresses resonance and enhances durability. A magnetic dispersion device at the plug tail spans across two terminal screws, helping to neutralize magnetic interference and maintain the clarity of current flow.
The cable uses a square copper clamp structure to minimize impedance at the termination point. The female connector is a Hubbell 20A/250V industrial-grade plug, known for its mechanical stability and current handling.
With a standard length of 2.0 meters, the MA-2200 is crafted to support high-current applications without compromise—delivering clean, uninterrupted power even to the most demanding power amplifiers. It provides a precise and stable electrical path that empowers your system to perform at its absolute peak, with clarity, composure, and dynamic ease.
﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏
FEATURES
- Conductor: 3.61 mm² solid-core 6N OCC single-crystal copper
- Multi-layer shielding with exclusive dielectric formula and advanced copper foil wrap
- Custom-designed NEMA plug for MA-22XX series, using KenStyle-grade internal structure
- Contacts made from precision red copper, slow-polished, plated with electronic-grade gold and rhodium, and cryo-treated
- Features square copper clamp structure and a magnetic dispersion device at the rear termination
- Rated: 600V / 20A
- Length: approx. 2.0 meters
(Custom lengths available; price increases by 20% per meter based on standard MSRP) - Weight: approx. 1520 g
⚠️ For maximum performance, avoid bending or stressing the cable near the connector ends. Use only as intended in high-fidelity environments.
