滿足想要充沛純勁電源的您
﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏
2021年初，MA靜神推出最新的室內電纜「SZZ-5.6 6N OCC」電源專線，內部三相線（水、火、地），皆採用高精純的6N OCC單晶銅導體，我們自源頭嚴選高精原銅，在製線的過程中，退火去除應力、一步步提升精純度，直到符合要求。此款「SZZ-5.6」以10蕊銅導線絞繞成一股、三相電分別各集七股絞繞成一線，最後再以無應力工序處理，直達最佳狀態。緊接著，將銅導線外部以黑（火）、白（水）、綠（地）三色HDPE披覆，其高強度、高彈性、耐溫、耐候性等……特性，並且環保無毒安全，建立出堅實的第一步介電安全，接著在三芯之間加入棉線條作為抑振緩衝之用，外部再以絕緣紙包覆，緊接著包覆一層科技銅皮，接著再一次以絕緣紙包覆，如此繁瑣工法，不僅能強化介電、抑止振動，降低線材扭轉時所造成的傷害，維持高傳導性能，並阻絕外部各種的EMI、RFI射頻噪訊干擾。最後再以一層高強度、耐熱阻燃、耐酸鹼、耐氣候變化的藍紫色PVC包覆保護，其兼具橡膠和塑膠的優點，材質穩定、電絕緣性高、抑振值高等特性，讓SZZ-5.6佔盡電輸優勢。MA靜神不僅追求電能的極致，更在乎性能是否能超越過去表現，MA以嚴謹的製作工序，達成最佳的電能傳輸效率，將電源完整的傳送至末端音響設備裡。
﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏
FEATURES 特點：
導體：三相（水、火、地）採用5.6mm2 6N OCC高精純單結晶銅 / 導體線徑：5.6mm2 (平方公釐)
線身：六道介電隔離防護（三色HDPE、抑振棉線條、兩層絕緣紙、科技銅皮、藍紫色PVC）
外線徑：13.5mm±0.2mm (線身直徑)
﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏
SZZ-5.6 6N OCC Indoor Three-Core Shielded Power Cable (Bulk Roll)
For those who demand full-bodied, uncompromised current delivery.
─────────────────────────────────────────────
Launched in early 2021, the SZZ-5.6 6N OCC power cable was born from Monitor Acoustics’ pursuit of exceptional purity and dynamic performance in power transmission. All three conductors—live, neutral, and ground—are constructed from ultra-pure 6N OCC (Ohno Continuous Cast) single crystal copper, selected at the source and carefully refined through multiple annealing stages to remove internal stress and elevate conductivity to its peak.
Each conductor core is composed of 10 copper strands twisted into a bundle, with seven such bundles braided into each phase wire. A final tension-free processing step ensures stable structure and optimal conductivity from the inside out.

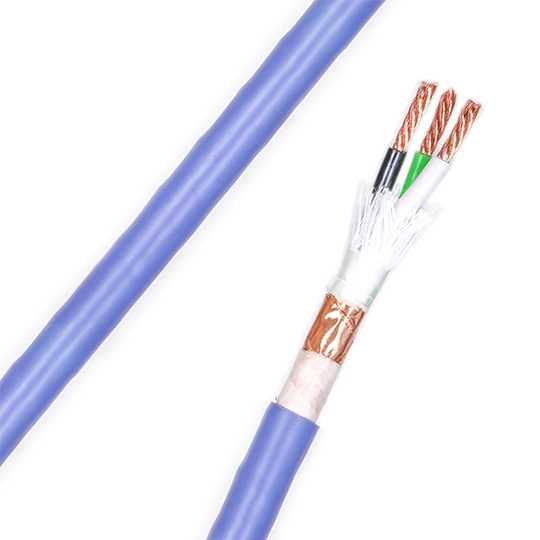

The conductors are then insulated with HDPE jackets in black (live), white (neutral), and green (ground)—a high-strength, high-flexibility, temperature- and weather-resistant dielectric material that is also non-toxic and environmentally safe. Cotton fillers are added between the cores to dampen mechanical vibration, followed by a layer of insulation paper, a high-purity copper foil shield, and another paper wrap—forming a compact multi-layer structure that reinforces dielectric protection, mitigates cable torsion damage, and effectively suppresses EMI and RFI interference.
The exterior is wrapped in a blue-violet high-grade PVC outer jacket, chosen for its superior durability, flame resistance, acid and alkali resistance, and overall weather stability. This PVC formulation offers the combined benefits of rubber and plastic: excellent elasticity, dimensional stability, strong vibration damping, and high electrical insulation—pushing the SZZ-5.6 to the forefront of power delivery performance.
The SZZ-5.6 was engineered not just to meet expectations, but to exceed previous benchmarks—demonstrating Monitor Acoustics’ core philosophy: true performance lies in the details. Each meter of this cable represents a careful synthesis of material science, acoustic engineering, and a commitment to uncompromising execution.
DIY users may optionally connect the copper foil shield to the male plug ground terminal for enhanced grounding performance and noise rejection.
─────────────────────────────────────────────
FEATURES
Conductors: Three-phase 6N OCC single crystal copper (Live, Neutral, Ground)
Conductor Size: 5.6mm²
Cable Architecture: Six-layer dielectric shielding
- HDPE insulation (color-coded black/white/green)
- Cotton vibration-damping fillers
- Dual insulation paper layers
- High-purity copper foil shielding
- Blue-violet PVC outer jacket
Outer Diameter: 13.5mm ± 0.2mm
