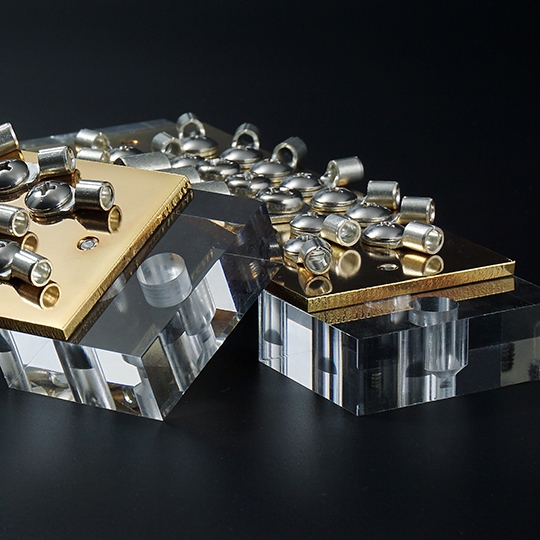

MA-PG-16 High Conductivity Bus Bar plate

新一代銅材、新一代電鍍、新一代孔位 三重進化，排導性能再次躍進
aa
bb
  • aa
  • bb
詳細介紹
MA-PG-16 High Conductivity Bus Bar plate
新一代銅材、電鍍、孔位 三重進化，排導性能再次躍進
﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏
越來越多人認知到電箱中的匯流排有多重要，不論是中性線、還是地線，電箱中的「匯流排」是集全室電源循環的中心，化零為整、集排污的關鍵中心；地磁污迴排不出去，將會大大影響電源效率，造成溫度上升、內阻變高，造成漏電外溢亂竄。因此我們利用電能超導技術，重新建構出高效率的「匯流排」，將中性線、地線的雜訊污染，迅速匯聚並釋放至大地之中，提高電源上的密度流量。
看似單純的匯流排，在我們製程裡、每個細節中都是萬分謹慎地在處理，銅板材選用高純度結晶合金銅，定版以3t厚度製作，因為過厚、過薄都將影響排導性能；銅板成形後，一路以獨有的「 UHD 淨化製程（Ultra High Definition Electroplating Technology）」，由慢磨、超淨、精鍍等……一連串的工序，透過「慢磨」將匯流排的表面細膩地勻化，促成長久穩定的可靠性能，緊接「超淨」以工業級超音波清洗機，將表層的雜質完全洗淨，最後才送至新一代電鍍廠。
電鍍的部分，我們為求極致完美，同步採用新一代電鍍「NewPlating」，我們在嘗試過各種電鍍組合，與各版本長時間試聽過後，最終定版選用「電子級 鈀金 與 純金」兩層電鍍，事前與電鍍廠的溝通、電鍍水的規格選擇、電鍍層的時間控制、厚度，還有最重要的要鍍什麼貴金屬、要鍍幾層，這些都是非常繁複、且費時的實驗工程，一定要實驗到性能、聲音滿意為止，才能定版出最佳的方案，將排導性能推至最佳化。
新版 MA-PG-16 上的固定螺絲，我們依舊選用不導磁的不鏽鋼材質，除了能夠避免感磁干擾、其高強度更能穩固端子線材。然而這次端子佈局與舊版稍有不同，端子依舊維持16組，裡頭新增一個內徑16mm的O型端子，排列方式也更加優化傳導，新匯流板上備三組內徑6.4mm的O型端子(14-6)與十三組內徑4.3mm的O型端子(5-4)，讓雜訊污染迅速匯集、釋放回大地，重獲高品質的電源能量。而MA一系列的電源解決方案中，針對地迴路有著獨步全球的技術，利用「超級地迴路接地板」、「超級接地器」、「HU-102M地迴專用單線芯電源線」接地鐵三角，將加速雜訊污染回歸大地，同時阻絕外部污染回竄，創造單向高排污、低內阻的高品質電源通道，一步步完善全室的供電系統，聽見立竿見影的超級靚化性能展現。
每個點都是匯聚能量的地方，如何讓點消失於無形，極速流暢的經過不著痕跡，考驗著系統的規劃設計、與每個元件的高規格製作工藝，我們深知全室的電源自始至終都在電箱中流動著，其中，匯流排就是極度核心重要的一個點，絕對不容小覷。趕快將您電箱裡的小小雜銅匯流排，換上 MA 靜神的「PG系列匯流排」，感受流暢無阻的極致電源，舒活音響生命力，只要用過自然就不會忘記。
﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏
FEATURES 特點：
導體採用高純度結晶銅合金、電子級 鈀、金 貴金屬電鍍層、不導磁的不鏽鋼螺絲
三組內徑6.4mm的O型端子(14-6)、十三組內徑4.3mm的O型端子(5-4)
尺寸：約 160×45.5×24mm(銅板 125×45×3t mm)/W×H×D
重量：約 255g/piece (一盒兩片)

﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏

MA-PG-16 High Conductivity Bus Bar Plate

Next-Gen Copper, Dual-Layer Plating, Optimized Layout — A Triple Evolution for Peak Power Purity

As more audiophiles recognize the vital role of the power distribution board inside the breaker panel, it’s clear that the bus bar—whether for neutral or ground—is not just a passive component. It’s the central hub for your entire system’s power loop. A poorly designed or noisy bus bar can trap magnetic and ground interference, leading to rising internal resistance, elevated temperatures, and leakage currents that wreak havoc on sound quality.

That’s why we re-engineered the MA-PG-16 using cutting-edge conductive technologies—to ensure cleaner, faster, and more efficient current flow through your entire power network. This high-performance bus bar rapidly collects and drains noise pollution from neutral and ground lines straight into the earth, enhancing the density and stability of your electrical current.



Re-Defining Bus Bar Craftsmanship

What looks like a simple copper bar is, in fact, the result of obsessive attention to every production detail. The MA-PG-16 begins with high-purity crystalline copper alloy, precision-cut to a 3mm thickness—thick enough to provide excellent conductivity, but not so thick as to induce transmission loss.

From there, it undergoes our proprietary UHD Purification Process (Ultra High Definition Electroplating Technology):

  • Slow polishing for a refined and uniform surface finish, improving long-term stability.
  • Ultra-clean ultrasonic bath to remove all microscopic contaminants.
  • Finally, it moves to a next-generation electroplating facility.

After countless listening tests and material trials, we settled on a dual-layer plating formula: electronics-grade palladium and pure gold. Every step—from bath composition and timing, to plating thickness and metal choice—was finely tuned to maximize both conductivity and sonic performance.



Upgraded Terminals & Layout

The MA-PG-16 includes 16 total terminals:

  • 1 × O-ring terminal with 16mm inner diameter
  • 3 × O-ring terminals with 6.4mm inner diameter (14-6 spec)
  • 13 × O-ring terminals with 4.3mm inner diameter (5-4 spec)

This refined layout ensures efficient grouping and discharge of ground noise, allowing your system to recover clean, high-quality power with ease. Mounting screws are crafted from non-magnetic stainless steel—immune to magnetic interference and built for rugged, vibration-resistant stability.



Built to Complete the MA Power Ecosystem

As part of Monitor Acoustics' total power solution, the MA-PG-16 works synergistically with our:

  • Super Ground Loop Isolation Plate
  • Super Ground Discharger
  • HU-102M Ground-Dedicated Single-Core Power Cable

Together, they form a "grounding triangle" that channels noise pollution away from your system while shielding it from incoming interference—creating a clean, one-way path for energy flow and sonic clarity you can hear instantly.



Every Contact Point Matters

Every terminal, every junction—these are potential bottlenecks or gateways. The MA-PG-16 turns them into invisible high-speed highways for current. With this level of precision engineering and material excellence, your system’s power flow becomes frictionless, seamless, and effortlessly dynamic.

If you're still using the generic bus bar that came with your breaker box, it's time to upgrade. Swap it for the MA-PG-16, and feel the difference—not just in your system's clarity, but in its soul. Once you've heard the effect, there's no going back.



Specifications

  • Conductors: High-purity crystalline copper alloy
  • Plating: Dual-layer—Electronics-grade Palladium + Pure Gold
  • Terminals:
     • 1 × 16mm ID O-ring terminal
     • 3 × 6.4mm ID O-ring terminals (14-6)
     • 13 × 4.3mm ID O-ring terminals (5-4)
  • Mounting Screws: Non-magnetic stainless steel
  • Dimensions: Approx. 160 × 45.5 × 24 mm (Copper plate: 125 × 45 × 3 mm)
  • Weight: Approx. 255g per piece (2 pieces per box)
