有效提升接地端的雜訊消除能力
﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏
MA為了電源優化，針對地迴路不佳的用家，推出了Studio MKⅡ、Basic MKⅡ兩款超級接地器，其中這款Basic MKⅡ，其最大衰減值達-50db。裡頭的MA奈米電磁核心，利用了電磁迴控制原理，有效降低噪訊干擾，同時拓展頻率的延伸，內阻就能在最佳狀態下，讓水火線的溫度不會上升、甚至下降，因此就能獲得更強大的電流能量，讓電源的效率能有大幅度的提升，吵雜的電源變純淨，重現寧靜安定的電源環境，讓電氣設備發揮應有的穩定實力。透過這個接地器裡頭全頻寬的核心被動元件，將無效的磁迴重新等化處理，將有效的頻率重新再生，不會產生任何負面效應，也不會改變您對聲音高標準的要求。用家不用擔心會不會很難安裝的問題，只需要超級接地器固定在電箱旁的RC牆上，再將電箱裡原始建築的「地迴路接地線」接上超級接地器的「OUT端」上，接著從「IN端」利用MA附贈的接地專用線，接回至電箱的「接地匯流排」上即可。
﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏
FEATURES 特點：
衰減值：-50DB Max
耐電流值：20A
響應頻率：Fo～30Mhz
外型尺寸：155×125×83mm（W×D×H / 含腳墊）
重量：約 1.8 kg ±5%
﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏

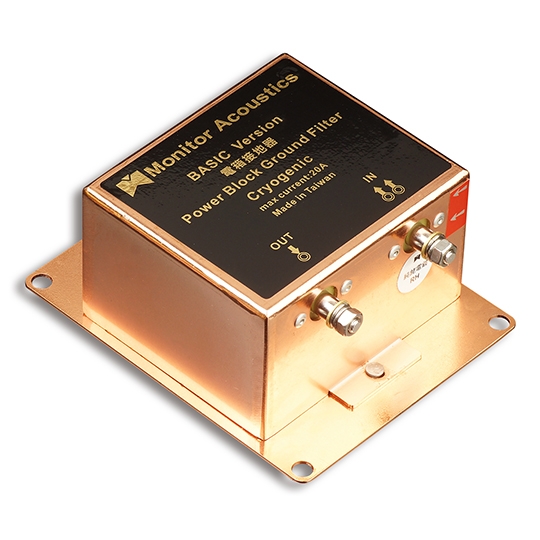

Basic MKII Super Ground Filter
Designed for Power Block Ground Filtering — elevate ground noise elimination with precision and simplicity
To address grounding deficiencies and optimize power performance, Monitor Acoustics introduces two Super Ground Filters: Studio MKII and Basic MKII. The Basic MKII—a compact and highly efficient unit—is designed specifically to enhance the noise suppression capability of grounding terminals, such as those in power distribution blocks.
With a maximum attenuation of -50dB, and utilizing the proprietary MA nano-electromagnetic core, the Basic MKII applies advanced electromagnetic loop control to effectively reduce noise interference while extending the bandwidth. Maintaining optimal internal resistance prevents temperature rise in the live and neutral lines, and may even result in a slight cooling effect. This enables greater current stability and dramatically improved power delivery efficiency, creating a clean, quiet power environment where your equipment can operate at its full potential.
Internally, the full-bandwidth passive components re-balance invalid magnetic loops and restore effective frequencies without introducing distortion, signal loss, or any unwanted side effects. Audio performance remains unaffected—your demand for sonic excellence is preserved.
Seamless Installation

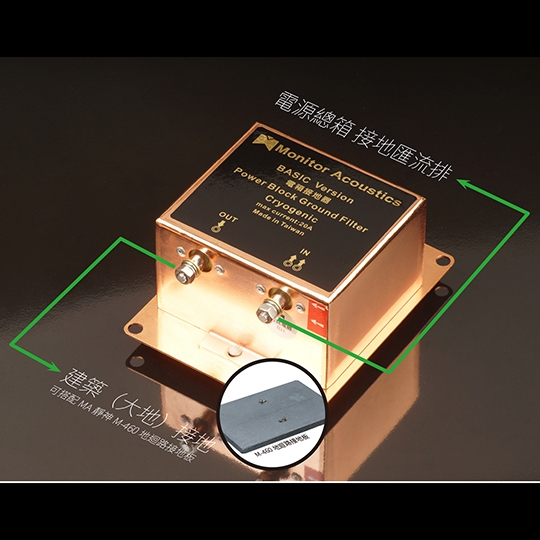

Installation is quick and intuitive. Simply mount the Basic MKII on the RC wall beside your breaker panel. Connect the original ground loop wire from the breaker box to the OUT terminal of the unit. Then, using the included MA grounding cable, connect the IN terminal back to the ground busbar in the breaker box. No power interruption or complex rewiring required.
FEATURES
- Attenuation: -50dB Max
- Current Capacity: 20A
- Frequency Response: Fo～30MHz
- Dimensions: 155 × 125 × 83 mm (W × D × H, including foot pads)
- Weight: Approximately 1.8 kg ±5%
