滿足想要充沛純勁電源的您
﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏
MA靜神專為室內電纜推出的SZZ-36M電源專線，內部水、火線採用5N LC-OFC大晶銅導體，以7蕊0.32mm的高純度、無應力銅導線絞繞成一股，地線則是採用4N LC-OFC大晶銅導體，同樣以7蕊0.32mm銅導線絞繞成一股， 水、火、地線在各集七股，以向左或右絞繞成一線，最後再次以無應力工序處理，緊接著外部再以耐高溫白、紅、綠三色SR PVC披覆，提供超越20A的負載壓力，建立出堅實的第一步介電安全，接著在三芯之間加入PE條作為抑振緩衝之用，外部再以絕緣紙包覆，緊接著包覆一層特殊的微導PVC，搭配上一股由30蕊0.16mm的OFC銅導線＊，外層再包覆一層厚科技銅皮捲繞，架構出完善的介電磁場、100%保護內部電源能量的完整傳輸，不會受到外部各式EMI、RFI的射頻噪訊干擾，最後再以一層黑色PVC包覆。SZZ-36M單芯導體線徑達3.6mm2，電能傳輸能力更勝SZZ-26M，MA以嚴謹的製作工序，達成最佳的電能傳輸效率，將電源完整的傳送至末端音響設備裡。
＊若玩家以SZZ-36M自製電源線，可將屏蔽線併接地線，接於公頭地迴端，進一步強化地迴的電位釋放，與電源能量無阻傳輸。
﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏
FEATURES 特點：
導體：兩條 5N LC-OFC高純度長結晶銅（水、火）、一條 4N LC-OFC高純度長結晶銅（地）/ 導體線徑：3.6mm2 (平方公釐)
線身：七道介電隔離防護（五道塑料：三色SR PVC、抑振PE條、絕緣紙、導電PVC、黑色PVC / 兩道金屬：OFC銅屏蔽導線、厚科技銅皮）
外線徑：13mm±0.2mm (線身直徑)
﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏

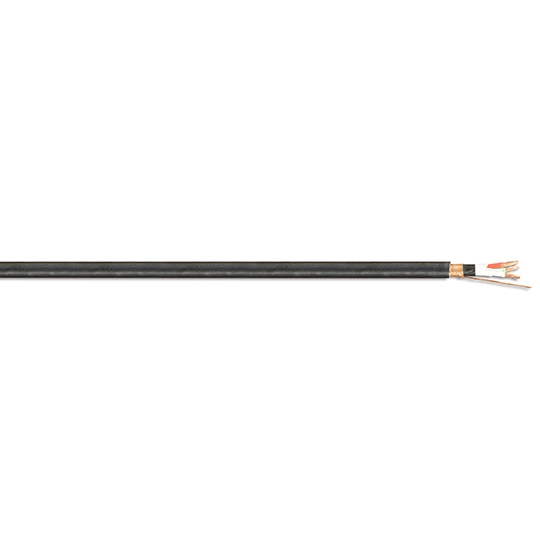

SZZ-36M-5N-A Indoor Three-Core Shielded Power Cable (Bulk Roll)
For those who demand clean, powerful current
─────────────────────────────────────────────
MA Silence proudly introduces the SZZ-36M, a purpose-built indoor power cable engineered for high-performance audio applications. The hot and neutral conductors are made of 5N LC-OFC (Long Crystal Oxygen-Free Copper), each composed of seven strands of 0.32mm high-purity, stress-free copper. The ground wire uses 4N LC-OFC, also in a 7-strand 0.32mm configuration. These three conductors are then bundled with a directional twist—left or right—before undergoing a final stress-relief process to ensure mechanical stability.
Each conductor is individually jacketed in high-temperature SR PVC (color-coded white, red, and green) capable of handling over 20A of continuous current, forming the first layer of dielectric integrity. Between the three cores, PE damping fillers are inserted to suppress micro-vibrations. The cores are then wrapped in insulating paper, followed by a layer of conductive micro-PVC, and then shielded with a braided 30-strand 0.16mm OFC drain wire.
A final wrap of heavy-duty copper foil forms a comprehensive EM/RF shield, achieving 100% protection against external EMI and RFI noise, ensuring a clean, uninterrupted energy transfer. The outermost layer is a durable black PVC jacket.
With a conductor cross-section of 3.6mm², the SZZ-36M surpasses the performance of the SZZ-26M, delivering more current with greater efficiency and less resistance. Built to MA's exacting standards, this cable is designed to deliver the full potential of your power supply to your audio components—clean, stable, and interference-free.
DIY users can optionally connect the shield drain wire to the ground pin on the AC plug. This improves ground potential equalization and enhances unimpeded energy flow across the system.
─────────────────────────────────────────────
FEATURES
Conductors: Two 5N LC-OFC Long Crystal Copper (Hot & Neutral), One 4N LC-OFC Long Crystal Copper (Ground)
Conductor Size: 3.6mm²
Cable Construction: Seven-layer dielectric protection
- Five non-metallic layers: SR PVC (white/red/green), PE fillers, insulation paper, conductive PVC, black PVC
- Two metallic layers: OFC copper drain wire, thick copper foil shielding
Outer Diameter: 13mm ± 0.2mm
