擁有鮮活靈動、栩栩如生的電源，就是這麼簡單！
﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏
MA靜神這款室內電源專線SZZ-50 MKII，內部採用5N OCC銅導體，以四層45蕊高純度、單結晶、無應力的5N OCC銅導線絞繞成一芯，水、火、地三芯分別以白、紅、綠三色SR PVC披覆，接著在三條線芯與兩層絕緣紙之間，填入棉線作為緩衝抑振材，外層再捲繞一層厚科技銅皮，來杜絕外在RFI/EMI的干擾，接著覆上一層PVC，最後再覆上一層綠色耐熱PVC作保護。SZZ-50 MKII單芯導體線徑達3.61mm2，電能傳輸效率佳，加上多道的介電層，阻斷外在無形的磁波干擾，直入純勁的優質電源，讓用家擁有充沛鮮明的電能。
﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏
FEATURES 特點：
導體：三條 5N OCC高純度單結晶銅 / 導體線徑：3.61mm2 (平方公釐)
線身：六道介電隔離防護（五道塑料：三色SR PVC、抑振棉線芯、絕緣紙、導電PVC、綠色PVC / 一道金屬：厚科技銅皮）
外線徑：12.5mm±0.2mm (線身直徑)
﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏

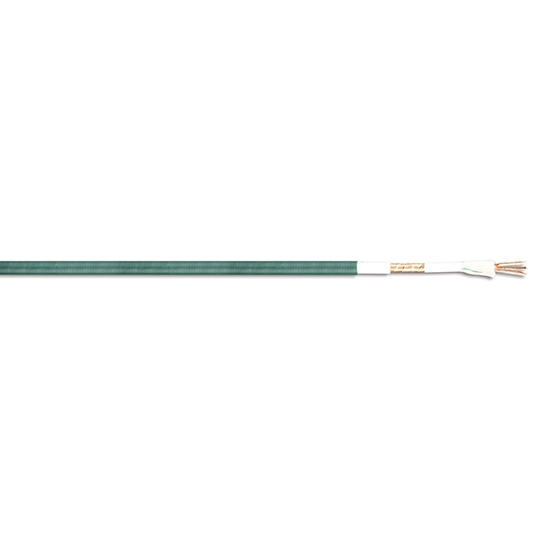

SZZ-50 MKII (5N OCC) Indoor Three-Core Shielded Power Cable (Bulk Roll)
Dynamic. Vivid. Lifelike power—made effortlessly real.
─────────────────────────────────────────────
The SZZ-50 MKII indoor power cable from Monitor Acoustics is crafted to deliver a vibrant, lifelike current that injects clarity, energy, and precision into your audio system. At its core lies a refined 5N OCC single crystal copper conductor, where each phase (live, neutral, ground) is formed from four bundles of 45-strand, stress-relieved OCC wires, achieving a conductor cross-section of 3.61mm²—a balance of power and agility ideal for hi-fi and precision equipment.
Each conductor is individually insulated with color-coded SR PVC jackets in white, red, and green. Between the three phase wires and their dual insulation paper layers, cotton filler threads are carefully inserted to damp mechanical vibrations and maintain internal structure. This is followed by a thick wrap of high-conductivity copper foil shielding, providing robust defense against EMI and RFI noise.
The cable’s outer protection begins with a layer of conductive PVC, enhancing shielding integrity, and is finalized with an additional green heat-resistant PVC jacket. This multi-layer dielectric structure not only secures excellent insulation and durability but ensures clean, uninterrupted power flow—essential for extracting every nuance of your audio source.
With the SZZ-50 MKII, achieving exceptional power transmission becomes simple: precise construction, superior materials, and the unmistakable clarity of Monitor Acoustics design philosophy.
For optimized grounding and shielding performance, users may optionally connect the copper foil shield to the male plug’s ground terminal.
─────────────────────────────────────────────
FEATURES
Conductors: Three-phase 5N OCC single crystal copper (Live, Neutral, Ground)
Conductor Size: 3.61mm²
Cable Architecture: Six-layer dielectric shielding
- SR PVC insulation (color-coded white/red/green)
- Cotton vibration-damping fillers
- Dual insulation paper layers
- High-conductivity copper foil shield
- Conductive PVC jacket
- Green heat-resistant outer PVC jacket
Outer Diameter: 12.5mm ± 0.2mm
