高純度5N OCC大線徑，展露大器不凡之氣
﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏
MA靜神推出重量級室內電源專線SZZ-55M，內部採用5N OCC銅導體，以7蕊0.30mm的高純度、單結晶、無應力OCC銅導線絞繞成一股，水、火、地線各以11股絞繞成一芯，三芯分別再以白、紅、綠三色SR PVC披覆，接著在三芯之間加入PE條作為抑振緩衝之用，外部再以絕緣紙包覆，緊接著包覆一層導電PVC，搭配上一股由19蕊0.16mm的OFC銅導線＊，外層再包覆一層厚科技銅皮捲繞，最後再以一層墨綠珠光PVC包覆。SZZ-55M單芯導體線徑達5.5mm2，不論安全規格、導體純度、製程規範，全都遠遠超越標準，展現無比的充沛能量，就算音響室裡一片機海，也不怕上氣不接下氣、供電不及讓聲音虛軟的窘狀。SZZ-55M以其優異的規格，展現大度大器的充沛電能，讓發燒用家擁有醇、勁、豐、潤、靚的電源。
＊若玩家以SZZ-55M自製電源線，可將屏蔽線併接地線，接於公頭地迴端，進一步強化地迴的電位釋放，與電源能量無阻傳輸。
FEATURES 特點：
導體：三條 5N OCC高純度單結晶銅 / 導體線徑：5.5mm2 (平方公釐)
線身：六道介電隔離防護（五道塑料：三色SR PVC、抑振PE條、絕緣紙、導電PVC、墨綠珠光色PVC / 一道金屬：厚科技銅皮）
外線徑：14.5mm±0.2mm (線身直徑)
﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏

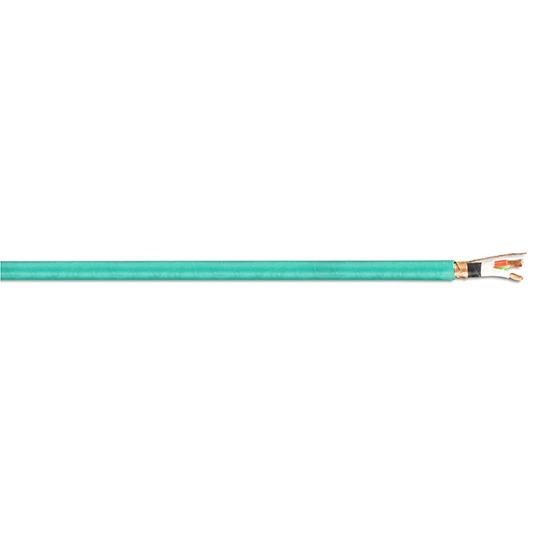

SZZ-55M (5N OCC) Indoor Three-Core Shielded Power Cable (Bulk Roll)
Commanding presence, exceptional purity—this is power, redefined.
─────────────────────────────────────────────
Introducing the SZZ-55M, Monitor Acoustics’ high-capacity indoor power cable designed for large-scale high-end audio systems. Engineered with 5N OCC single crystal copper conductors and an oversized 5.5mm² core cross-section, this model delivers uncompromising current flow and rock-solid stability.
Each conductor is constructed by twisting together 11 bundles, each composed of seven strands of 0.30mm 5N OCC copper wire—all stress-relieved and precision-aligned to ensure optimal conductivity. The three cores (live, neutral, ground) are individually insulated with color-coded SR PVC jackets in white, red, and green. To reduce resonance and enhance mechanical isolation, PE rods are strategically positioned between the cores, which are then wrapped in insulating paper.
Further shielding is provided by a dual-layered configuration: a layer of conductive PVC combined with a separate 19-strand 0.16mm OFC copper drain wire, and then encased in a thick copper foil shield. This design effectively suppresses RFI/EMI noise, ensuring a pristine power signal. The cable is finished in a dark green pearlescent PVC outer jacket—durable, elegant, and highly resistant to heat, acid, and wear.
With its large gauge, exceptional shielding, and premium conductor material, the SZZ-55M provides dynamic, full-bodied, and unshakably firm power delivery—ideal for complex setups with multiple high-powered components.
For DIY applications, the shield drain wire may be grounded via the plug's earth terminal to enhance ground potential release and maximize current delivery.
─────────────────────────────────────────────
FEATURES
Conductors: Three-phase 5N OCC single crystal copper
Conductor Size: 5.5mm² per core
Cable Architecture: Six-layer dielectric shielding
- SR PVC insulation (white/red/green)
- PE rods for anti-resonance damping
- Dual paper insulation layers
- Conductive PVC layer
- 19-strand 0.16mm OFC drain wire
- Thick copper foil shield
- Pearlescent dark green PVC outer jacket
Outer Diameter: 14.5mm ± 0.2mm
