IG AG-Q Isolation AC Receptacle 隔離電源插座 ( Digital)
面面俱到、給電源一個無阻橋樑
﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏
電源系統走到了末端，最常被忽略的就是牆壁上的「壁插座」，一般家用對電路要求，大多只是電箱電閘數要足、電線要粗，而對壁插座就沒有那麼的要求了，但這個關鍵的「連接點」，對於電源的傳遞卻是無比重要，您可以想像一下，插座的設計與品質優劣，就像賽跑賽道上的跨欄高度一樣，阻擋了電源的流暢度，所以在挑選「壁插座」的時候、絕不能馬虎，性能是否達至高導電、耐高電壓、耐高電流、耐高溫、低溫升係數與穩固的夾持力都是要考量的要點。
MA靜神在2011年開發出高性能的「AG-P (Analog) / AG-Q (Digital) 隔離電源插座」，直至今日這兩款插座，還是難以被超越，可說是MA靜神的傳奇，當年以極盡苛求的工藝，從外殼模具、金屬導材、打磨方式、電鍍配方、組裝步驟等等…都錙銖必較，特殊的鈹銅合金傳導核心，採用少見繁工的五爪夾片設計，佐以細膩的打磨與貴金屬電鍍，其中還特別要求配合的電鍍廠，使用MA靜神指定的「精密電子級電鍍水」，不惜製作成本、也要把東西做到最好。而「靚電」細節還不僅僅如此，還有五爪夾片的咬合角度、地迴路的處理、插座外殼的結構、外殼塑料的配方、製程的特殊要求，這些細節都要面面俱到，才能將性能發揮至極致，以極為優異的性能，讓許許多多的音響玩家用上了就「難以自拔」，展現產品無與倫比的性能表現。
其中這款「AG-Q」隔離式插座，是我們專為前端器材（CD、BD、SACD、LP）播放機、DAC、數位前級所設計，核心導電材選用高純度、高導電係數、厚達0.8mm的鈹銅合金，並採用五爪接點設計，導體表面經過特殊的奈米研磨技術處理，並鍍上厚層的貴金屬銠金，最後再處以-196°C超冷處理，讓金屬原子更加緊密連結，並消除金屬應力。隔離淨電模組以一組鍍上24K金的4N紅銅接地板，加上強化隔離絕緣的塑料配方，展現高穩定、無諧振、超靜低噪、均勻平衡、緊密插拔的高性能隔離電源插座，提供持續穩定且充沛的優越電能，將全頻寬的大電源能量，無損地延續至音響設備中，穩固地捕捉出音樂的紋理，就算在細微的弱音下，也能清晰明確地尋出音向，盡現音樂裡的情緒氛圍，MA靜神用心為「音響級」壁插座分級別類，只為將最美好的聲音，進入您的音響系統之中。隨盒配件附有電源專用螺絲與O型電源端子，讓您正確方便地更換電源插座。
FEATURES 特點：
■ 核心導電材採用5pin接點設計，接駁緊密、無阻傳輸。
■ 核心導電材採用0.8mm厚的鈹銅合金，並鍍上不含電解銅鎳之0.9μ厚的貴金屬銠金。
■ 接地板採用2mm厚的4N紅銅板，並鍍上24K金。
■ 金屬導電材都經過多次細緻打磨。
■ 隔離絕緣板，上蓋採用120℃高耐溫尼龍材，底座採用PBT複合塑膠加上特殊纖維，接地板中間所用的夾層絕緣板耐電壓達2000V。
■ 採用臺灣頂級無磁、高強度不鏽鋼螺絲。
■ 金屬導材交由臺灣超冷科技處以12小時、-196°C的超冷處理。
■ 產品全為 Made in Taiwan 100% 台灣製造。
■ 尺寸：約34×93.5×30mm (W×H×D)
■ 重量：約100g
﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏

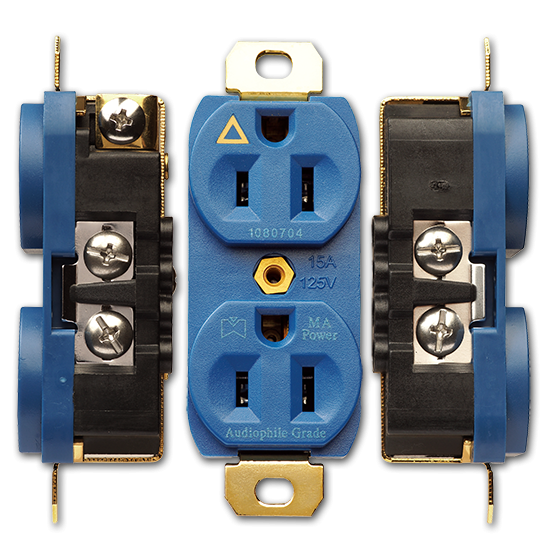

IG AG-Q Isolation AC Receptacle (For Digital)
Uncompromised Connectivity – A Seamless Bridge for Your Power Supply
﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏﹏
In the realm of power transmission, the final leg is often the most neglected—the in-wall AC receptacle. While most attention is paid to circuit breakers or cable thickness, the importance of this last connection point cannot be overstated. Just like hurdles on a track slow down a runner, subpar receptacles can restrict the smooth flow of power, undermining system performance and sonic purity.
Monitor Acoustics recognized this critical detail in 2011 and responded with the development of the high-performance AG-P (Analog) and AG-Q (Digital) isolation AC receptacles. These designs quickly became legendary, renowned for their obsessive craftsmanship across every detail—custom casing molds, proprietary copper alloys, surface polishing, precious metal plating, and even the assembly protocols. At the heart of each unit lies a custom-engineered beryllium copper alloy contact system with a rare and refined five-prong configuration, precision-ground and plated with noble metals using MA’s exclusive semiconductor-grade electroplating bath.
But it doesn’t stop there. Every element—from the bite angle of the five-prong terminals, grounding loop control, structural design of the enclosure, to the custom plastic compound infused with vibration-damping materials—was meticulously optimized to deliver reference-grade performance. This level of engineering has earned the AG series a loyal following among audiophiles, many of whom describe it as a truly transformative upgrade.
The AG-Q model was specifically designed for digital source components such as CD, BD, SACD, LP players, DACs, and digital preamplifiers. Its contact blades are made from 0.8mm-thick, high-conductivity beryllium copper alloy, featuring a five-prong engagement system that ensures consistent, low-resistance connection. These are nano-polished, plated with a thick 0.9µm layer of rhodium, and subjected to -196°C cryogenic treatment over 12 hours to realign the crystal structure and reduce internal stress—resulting in smoother, faster energy flow.

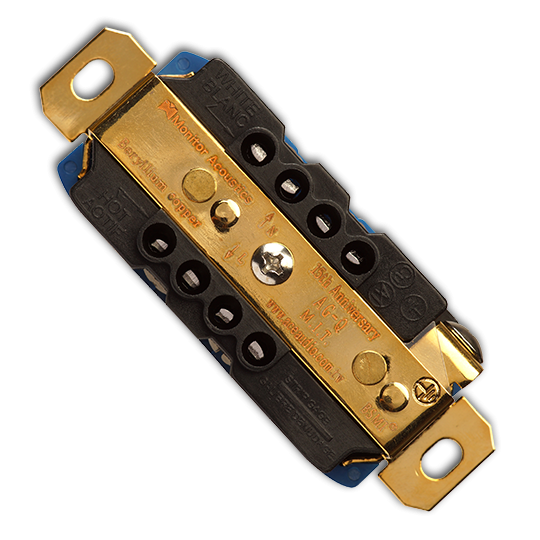

Internally, the isolation and grounding structure is equally robust. The grounding plate is made from 2mm-thick 4N pure red copper, plated in 24K gold. The enclosure is crafted from temperature-resistant nylon (top) and a PBT composite base reinforced with high-strength fibers. A central insulating layer between the live/neutral and ground conductors provides dielectric strength up to 2000V, ensuring long-term safety and isolation performance. The unit also employs non-magnetic, high-tensile stainless steel screws, and all metallic parts are cryo-treated for maximum stability.

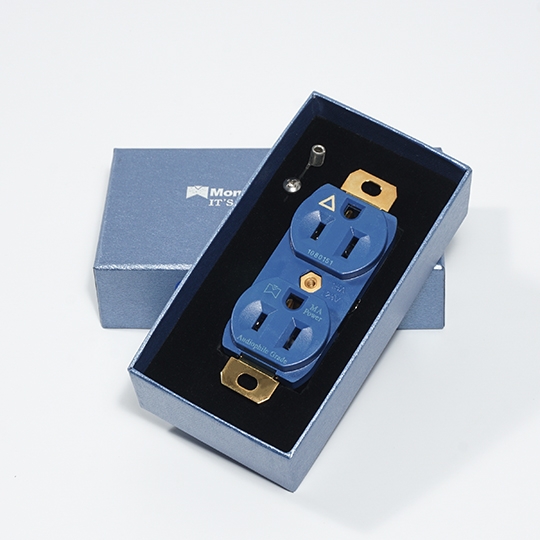

Each unit is 100% Made in Taiwan, reflecting uncompromising quality control and artisan-grade attention to detail. The AG-Q includes audiophile-grade screws and O-ring terminals to ensure a safe, accurate, and secure installation process.
Designed to preserve and transfer pure, full-spectrum power, the AG-Q enables digital systems to capture the finest musical textures—retrieving low-level detail and ambient cues with stunning clarity and dynamic accuracy.
FEATURES
- Contact Design: Precision 5-prong beryllium copper contact system for tight, low-loss connection
- Conductor Plating: 0.9µm thick rhodium plating, free of electrolytic copper or nickel interference
- Grounding Plate: 2mm thick 4N red copper with 24K gold plating
- Insulation Structure: High-temp nylon top, fiber-reinforced PBT base, 2000V-rated center insulation layer
- Fastening Hardware: Premium non-magnetic, high-tensile stainless steel screws
- Cryogenic Treatment: All conductors cryo-treated at -196°C for 12 hours
- Country of Origin: 100% Made in Taiwan
- Dimensions: Approx. 34 × 93.5 × 30 mm (W × H × D)
- Weight: Approx. 100g
Engineered for uncompromised digital performance – the purest signal begins with the purest power.
